Transient shaper vs saturation

Gazillion Industries ·

A transient shaper and a saturator both get sold as the way to make drums punch, which is a little like selling a sprinter and a linebacker as the same hire. Both are athletes. They win by doing opposite things.

A transient shaper and saturation push drums in opposite directions. A transient shaper boosts or cuts the attack and sustain of each hit directly, so it makes the front edge sharper and the peaks taller relative to the body. Saturation softens the peaks and adds harmonics, so it makes the body denser relative to the peak. Use a transient shaper when drums sound flat and soft; use saturation when they sound thin and small; use both, in the right order, when they're both.

The short version

Transient shaper
sharper attack, taller peaks, no threshold
Saturation
denser body, softer peaks, added harmonics
Flat, soft drums
transient shaper
Thin, small drums
saturation
Loudness
shaping costs headroom; saturation gives it back
Both
order decides whether the hit gets grit or stays clean

What a transient shaper does

A transient shaper follows the shape of each hit and splits it into the attack and what comes after. Turn the attack up and the front edge of every hit gets louder; turn the sustain down and the tail tightens. It works on the shape of the hit regardless of how loud it is, so there is no threshold to set. The result is a sharper, more pronounced hit, with taller peaks relative to the average level.

What saturation does

Saturation bends the waveform on a curve. The loudest parts bend most, so the peaks come down relative to the body, and the bending adds harmonics above the notes. The result is a thicker, denser, more present hit with a lower peak-to-average ratio. More in saturation vs distortion.

They move in opposite directions

That's the part that matters. A transient shaper raises the gap between peak and average; saturation and clipping shrink it. So a transient shaper makes drums punchier and uses up headroom, and saturation makes them denser and louder at the same ceiling. Neither is better. They fix different problems.

Which one your drums need

BEEFY is a saturation and loudness plugin, not a transient shaper: it squeezes some space out of the peaks and adds body. The demo on the page is 28 seconds.

Using both

  1. For hits with grit on the front edge: transient shaper first (attack up), then the saturator.
  2. For density with the attack restored: saturator first, then a transient shaper to bring back the edge.
  3. Match levels after each plugin so you judge the change, not the volume.
  4. Compare the two orders on the same loop and keep the one that fits.

Shaper first means taller attacks drive the saturator harder, so the hits get the most grit. Saturator first means the shaper can put back some of the edge the curve took off.

Questions people ask

Is a transient shaper just a compressor?

No. A compressor reacts to level above a threshold. A transient shaper reacts to the shape of each hit, boosting or cutting its attack and sustain whether the hit is loud or quiet. A slow-attack compressor can emphasize transients too, but less directly.

Should I apply saturation before or after compression?

Both work. Saturation first gives the compressor softer peaks, so it works less. Saturation after lets the compressor's attack shape drive the saturator, so the hits bite harder. Try both.

Does a transient shaper make drums louder?

It makes them punchier, but boosting the attack raises the peaks, which uses up headroom. Saturation or soft clipping is what lets drums sit louder at the same ceiling.

Stock plugins that do this

FL Studio
Transient Processor (a paid add-on); Fruity Blood Overdrive
Ableton Live
Drum Buss (Transients, Crunch); Saturator
Logic Pro
Enveloper; ChromaGlow (Logic Pro 11 and later)

What BEEFY does

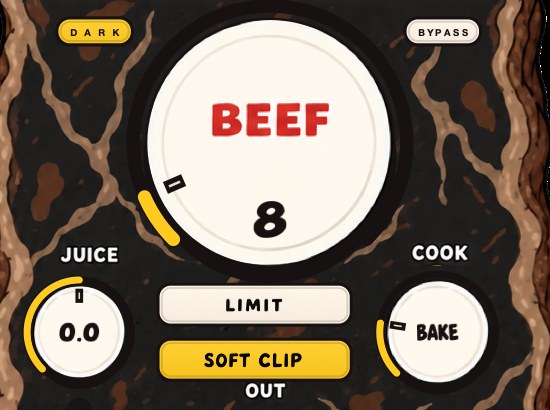

BEEFY is the saturation side of this page: a saturation and loudness effect that adds body, squeezes some space out of the peaks, and brings out harmonics that help a sound feel bigger. BEEF is the main control, COOK sets the color, and SOFT CLIP, on by default, rounds off the loudest parts. If your drums need a sharper front edge first, put a transient shaper ahead of it.

Hire the sprinter, hire the linebacker. Just don't ask either one to play the other's position.
